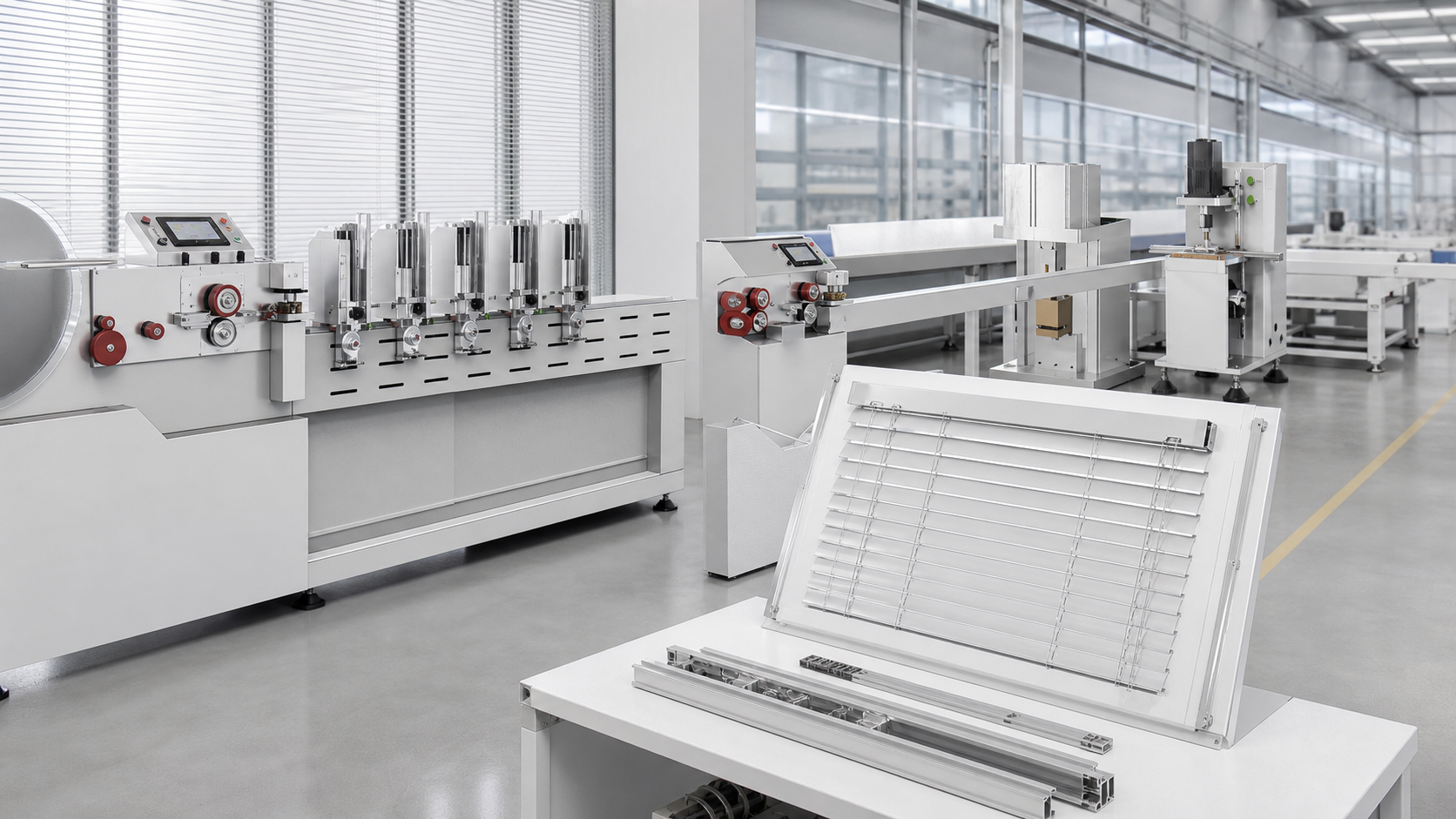

A modular production plan for exterior Venetian and partition blinds, from slat forming and rail processing to assembly and final inspection. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Form and punch slats to the selected profile.
- Process head and bottom rails.
- Punch profile and accessory features.
- Drill the bottom rail.
- Assemble ladder cord, controls and rails.
- Hang and inspect the complete blind.
Step 1: Slat forming — choose one
Semi-Automatic Blind Slat Machine
Line status: Essential lower-output alternative
| Version | Catalog parameters |
|---|---|
| Catalog reference | 100 kg | 1.5 kW | 3,800 × 400 × 1,400 mm |
Lower initial automation while retaining profile-specific processing. Choose instead of the automatic machine.
Fully Automatic Blind Slat Machine
Line status: Automated slat-forming option
| Version | Catalog parameters |
|---|---|
| Catalog reference | 250 kg | 2 kW | 3,800 × 500 × 1,400 mm |
Select slat profile, width, ladder positions and punching stations from the finished-blind specification.
Step 2: Automatic rail processing
Fully Automatic Rail Machine
Line status: Shared rail-processing machine
| Version | Catalog parameters |
|---|---|
| Catalog specification | 250 kg | 4 kW | 7,000 × 800 × 1,200 mm |
Confirm rail cross-section, hole pattern, cut length and tooling from customer drawings.
Step 3: Auxiliary punching and drilling
Pneumatic Punch
Line status: Shared auxiliary station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 15/25 kg | 0.7 MPa compressed air, 30 L/min | 275 × 320 × 350 mm |
Punch tooling is profile-specific and must be quoted after sample or drawing review.
Bottom Rail Drilling Machine
Line status: Shared rail-finishing station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 25 kg | 0.2 kW | 600 × 400 × 750 mm |
Coordinate hole positions with cord path, ladder system and end clearances.
Step 4: Final inspection
Single-Column Inspection Hoist
Line status: Shared compact inspection station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 80 kg | 0.5 kW | 250 × 640 × 3,100 mm |
A compact vertical test station for level, travel and control checks.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | Semi-automatic slat machine + shared punch/drill + manual rail work |
| Recommended | Automatic slat machine + automatic rail machine + punch/drill + hoist |
| Profile-specific | Confirm curved/factory-shape slat tooling and ladder stations before specification |
Quality-Control Checklist
- Slat profile, pitch and hole position
- Rail length and datum consistency
- Ladder alignment and control routing
- Tilt, lift, level and appearance checks
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
