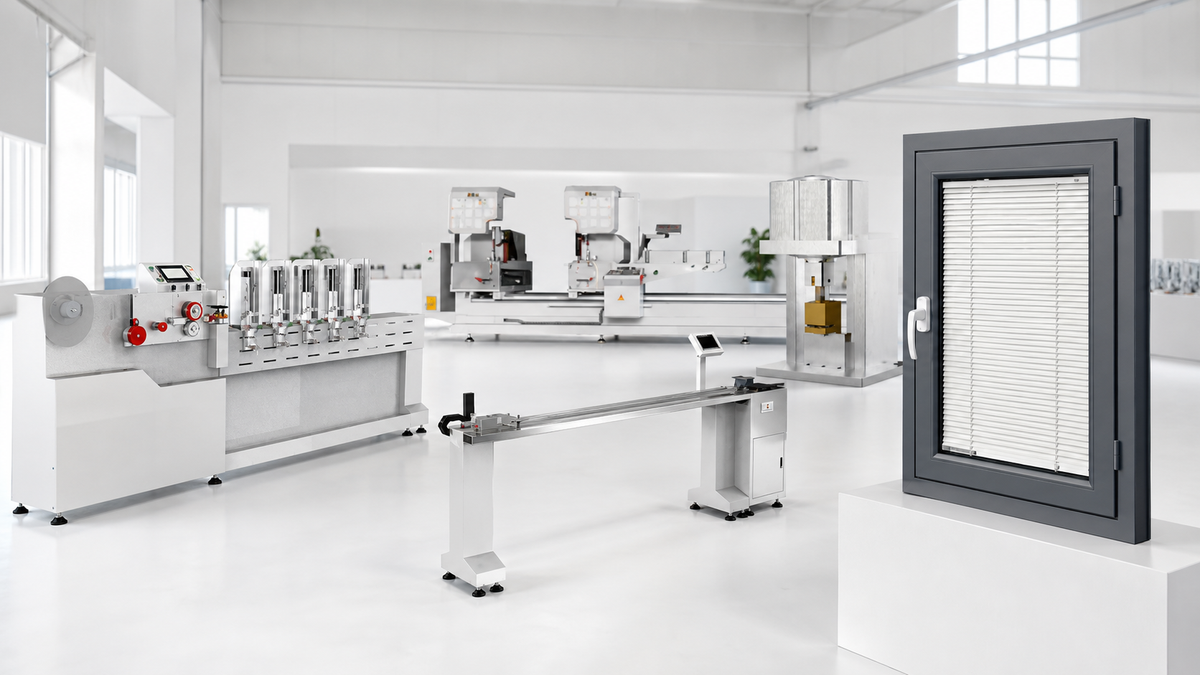

A production solution for single-glass magnetic blinds covering slat forming, 45-degree frame cutting, positioned punching, assembly and functional inspection. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Form and punch the selected slat profile.
- Cut frame profiles at 45 degrees.
- Position and punch frame/rail features.
- Assemble the magnetic control and blind.
- Install the blind into the single-glass frame.
- Inspect corners, controls, tilt and lift.
Step 1: Slat forming — choose one profile
C-Shape Magnetic Blind Slat Machine
Line status: Slat-profile alternative
| Version | Catalog parameters |
|---|---|
| Catalog specification | 250 kg | 2 kW, 220 V, 50 Hz | 3,800 × 400 × 1,200 mm |
Choose C-shape or L-shape according to the integrated blind system; do not purchase both unless producing both profiles.
L-Shape Magnetic Blind Slat Machine
Line status: Slat-profile alternative
| Version | Catalog parameters |
|---|---|
| Catalog specification | 250 kg | 2 kW, 220 V, 50 Hz | 3,800 × 400 × 1,200 mm |
An alternative profile configuration requiring matching materials, punches and assembly components.
Step 2: 45-degree frame/profile cutting
45-Degree Double-Blade Saw
Line status: Required frame/profile cutting station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 600 kg | 3 kW | 3,000 × 1,000 × 1,750 mm |
Set fixtures and blade selection for the actual frame profile and corner-joint requirement.
Step 3: Positioned punching — choose one
Pneumatic Punch
Line status: Shared auxiliary station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 15/25 kg | 0.7 MPa compressed air, 30 L/min | 275 × 320 × 350 mm |
Punch tooling is profile-specific and must be quoted after sample or drawing review.
Automatic Positioning Punch
Line status: Automated punching option
| Version | Catalog parameters |
|---|---|
| Catalog specification | 150 kg | 0.4 kW | 2,300 × 600 × 1,400 mm |
Use for repeat hole positions; a pneumatic punch is the essential alternative for flexible lower-volume work.
Step 4: Compact final inspection
Single-Column Inspection Hoist
Line status: Shared compact inspection station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 80 kg | 0.5 kW | 250 × 640 × 3,100 mm |
A compact vertical test station for level, travel and control checks.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | One slat profile machine + double-blade saw + pneumatic punch |
| Recommended | One slat profile machine + saw + automatic positioning punch + hoist |
| Dual-profile | Add both C and L processing only for a confirmed two-system product range |
Quality-Control Checklist
- Accurate 45-degree mitres and corner fit
- Repeat hole datum and punch quality
- Magnetic control alignment
- Smooth lift/tilt and finished frame squareness
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
Plan Your Blind Production Line
Get machine selection, line-layout and installation guidance for your project.
