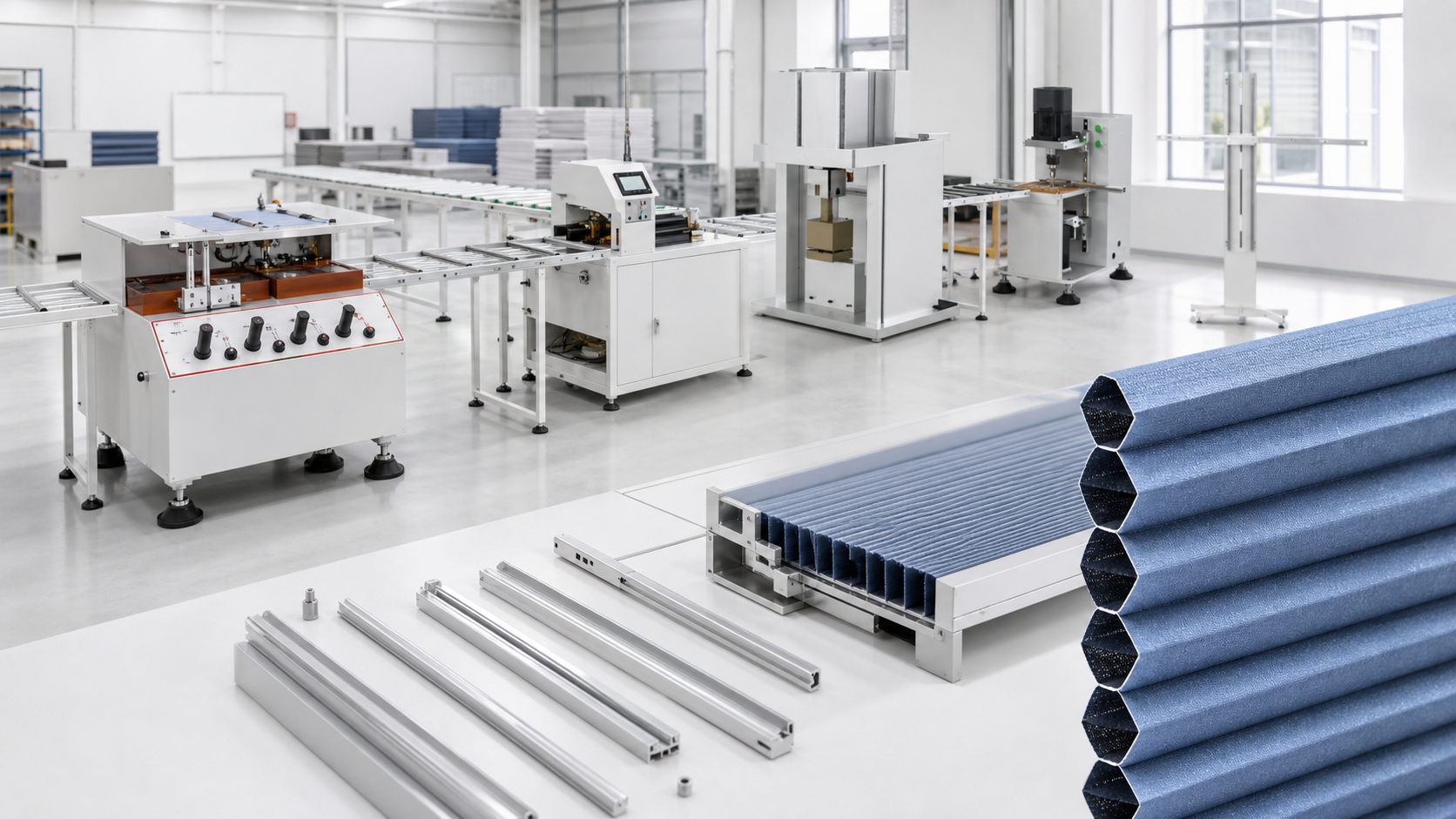

A corrected honeycomb blind solution centered on cellular-material drilling/cutting, rail processing, cord-path alignment, assembly and inspection. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Confirm cell size, material stack, control type and dimensions.
- Cut and drill the compressed cellular material.
- Process head and bottom rails.
- Punch and drill rail features.
- Assemble cords, controls, rails and cellular material.
- Hang and inspect balance, cell alignment and travel.
Step 1: Cellular material drilling and cutting
Honeycomb Blind Drilling & Cutting Machine
Line status: Required category-specific core machine
| Version | Catalog parameters |
|---|---|
| Catalog reference | 50 kg | 0.2 kW | 400 × 800 × 300 mm |
Horizontal and vertical versions are alternatives chosen by material handling and workshop layout.
Step 2: Automatic rail processing
Fully Automatic Rail Machine
Line status: Shared rail-processing machine
| Version | Catalog parameters |
|---|---|
| Catalog specification | 250 kg | 4 kW | 7,000 × 800 × 1,200 mm |
Confirm rail cross-section, hole pattern, cut length and tooling from customer drawings.
Step 3: Auxiliary punching and drilling
Pneumatic Punch
Line status: Shared auxiliary station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 15/25 kg | 0.7 MPa compressed air, 30 L/min | 275 × 320 × 350 mm |
Punch tooling is profile-specific and must be quoted after sample or drawing review.
Bottom Rail Drilling Machine
Line status: Shared rail-finishing station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 25 kg | 0.2 kW | 600 × 400 × 750 mm |
Coordinate hole positions with cord path, ladder system and end clearances.
Step 4: Final inspection
Single-Column Inspection Hoist
Line status: Shared compact inspection station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 80 kg | 0.5 kW | 250 × 640 × 3,100 mm |
A compact vertical test station for level, travel and control checks.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | Horizontal or vertical honeycomb drill/cut machine + profile-specific finishing tools |
| Recommended | Dedicated honeycomb machine + automatic rail line + punch/drill + hoist |
| Shared-factory | Reuse rail and inspection equipment with PVC, wood or Venetian blind lines |
Quality-Control Checklist
- Keep the cellular stack square and correctly compressed
- Align material holes with the complete cord path
- Prevent cell crushing, tearing and adhesive damage
- Check lifting balance and rail level through repeated cycles
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
Plan Your Blind Production Line
Get machine selection, line-layout and installation guidance for your project.
