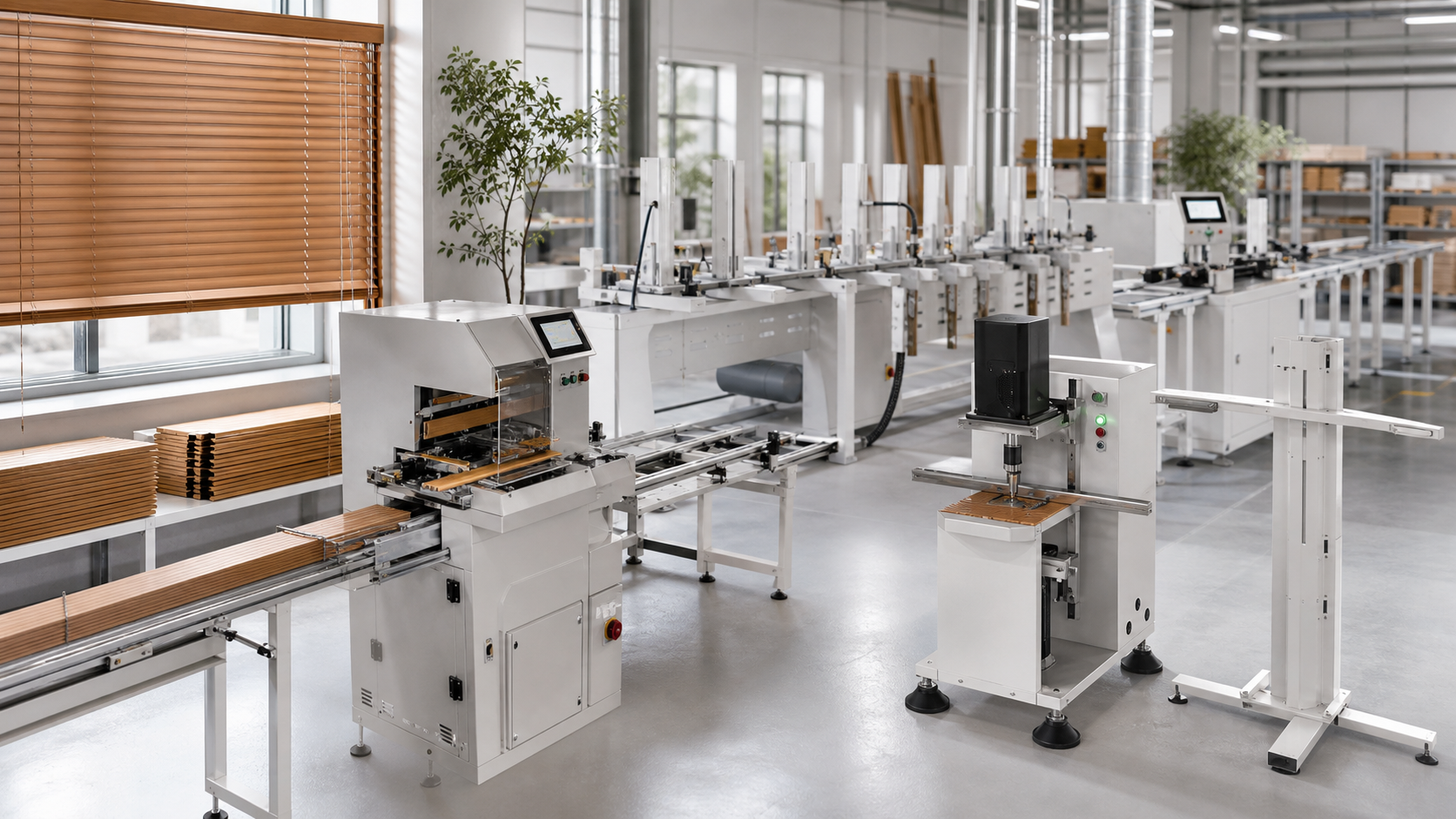

A flexible production plan for bamboo, wood and foam blinds, with manual-to-automatic alternatives for slat cutting, punching and threading. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Condition and inspect slat material.
- Cut slats to finished length.
- Punch or drill ladder locations.
- Process head and bottom rails.
- Thread and assemble ladder cord, controls and slats.
- Hang and inspect the complete blind.
Step 1: Slat cutting and positioning
Blind Slat Cutting Saw
Line status: Required slat-length station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 200 kg | 3 kW | 6,500 × 1,000 × 1,350 mm |
Manual- and automatic-positioning quotations are available; select one by output and length mix.
Step 2: Punching/threading — choose one
Semi-Automatic Blind Punching Machine
Line status: Essential punching option
| Version | Catalog parameters |
|---|---|
| Catalog specification | 100 kg | 1.5 kW | 6,200 × 600 × 1,200 mm |
Flexible option for lower output; punch stations are configured to the required ladder layout.
Fully Automatic Blind Punching & Threading Machine
Line status: Automated punching/threading alternative
| Version | Catalog parameters |
|---|---|
| Catalog specification | 350 kg | 2 kW | 6,300 × 800 × 1,400 mm |
Combines repeat punching and threading work. Confirm number of punches and ladder cords before order.
Step 3: Shared rail preparation
Fully Automatic Rail Machine
Line status: Shared rail-processing machine
| Version | Catalog parameters |
|---|---|
| Catalog specification | 250 kg | 4 kW | 7,000 × 800 × 1,200 mm |
Confirm rail cross-section, hole pattern, cut length and tooling from customer drawings.
Pneumatic Punch
Line status: Shared auxiliary station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 15/25 kg | 0.7 MPa compressed air, 30 L/min | 275 × 320 × 350 mm |
Punch tooling is profile-specific and must be quoted after sample or drawing review.
Bottom Rail Drilling Machine
Line status: Shared rail-finishing station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 25 kg | 0.2 kW | 600 × 400 × 750 mm |
Coordinate hole positions with cord path, ladder system and end clearances.
Step 4: Final inspection
Single-Column Inspection Hoist
Line status: Shared compact inspection station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 80 kg | 0.5 kW | 250 × 640 × 3,100 mm |
A compact vertical test station for level, travel and control checks.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | Manual-positioning saw + semi-automatic punch + shared finishing tools |
| Recommended | Automatic-positioning saw + fully automatic punch/thread machine + rail line |
| Material-flexible | Confirm fixtures, feed pressure and dust extraction for bamboo, wood or foam |
Quality-Control Checklist
- Material moisture/straightness and surface protection
- Clean square ends without splintering
- Consistent punch pitch and ladder alignment
- Level slats, smooth tilt/lift and finish quality
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
