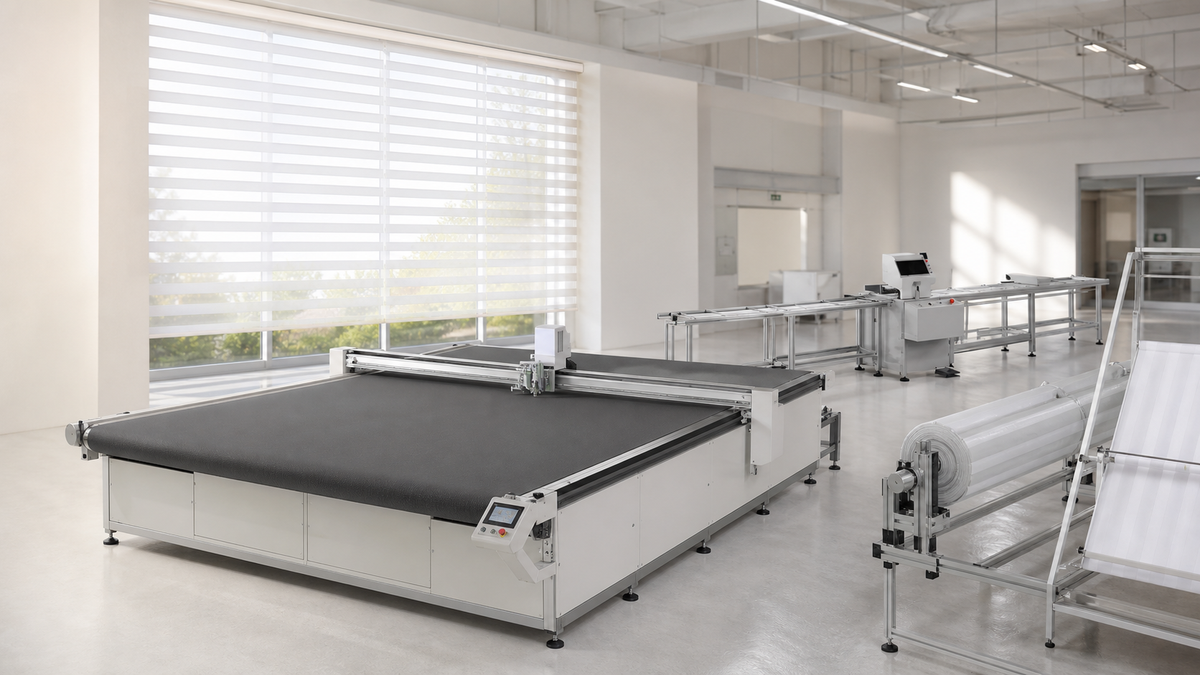

A practical production plan for Shangri-La sheer blinds, focused on delicate-fabric handling, precise cutting, layered assembly, tension and alignment. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Inspect the sheer-vane material and repeat.
- Align and cut without distorting the layered structure.
- Prepare tube and profiles to the confirmed system.
- Assemble the layered fabric structure.
- Set tension and vane alignment.
- Inspect appearance and operation through the full travel.
Step 1: Precision fabric cutting — choose one
Vibration Knife Fabric Cutting Machine
Line status: Alternative / shared digital cutting platform
| Version | Catalog parameters |
|---|---|
| 4 m version | 1,200 kg | 11 kW | 5,470 × 3,920 × 1,300 mm |
| 6 m version | 1,500 kg | 11 kW | 7,470 × 3,920 × 1,300 mm |
Choose one working length according to maximum product width. Layout-and-label configurations are available; confirm software workflow before specification.
Pressure Knife + Flying Knife Machine
Line status: Mechanical cutting alternative
| Version | Catalog parameters |
|---|---|
| Single flying knife | 650 kg | 0.9 kW | 4,800 × 4,280 × 965 mm |
| Double flying knife | 700 kg | 1.2 kW | 4,900 × 4,280 × 965 mm |
Select single or double flying knife by trimming method and required throughput; they are alternatives, not a mandatory pair.
Step 2: Optional shared profile processing
Hand-Lever Aluminum Profile Cutting Machine
Line status: Essential budget alternative
| Version | Catalog parameters |
|---|---|
| Catalog specification | 320 kg | 2.5 kW | 6,650 × 1,050 × 1,300 mm |
Suitable for flexible custom sizes and lower output. It is an alternative to CNC positioning.
CNC Aluminum Profile Cutting Machine
Line status: Recommended shared profile cutter
| Version | Catalog parameters |
|---|---|
| Catalog specification | 320 kg | 2.5 kW | 6,650 × 1,050 × 1,300 mm |
Best for repeat dimensions and faster positioning. Confirm blade, guarding and profile fixtures against actual drawings.
Step 3: Optional shared hanging inspection
Single-Sided Inspection Hoist
Line status: Shared final inspection equipment
| Version | Catalog parameters |
|---|---|
| Catalog specification | 150 kg | 0.4 kW | 3,000 × 800 × 3,300 mm |
Use for vertical operation, tracking, squareness and appearance inspection.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | Material-matched cutting + manual profile/assembly resources |
| Recommended | Digital cutter + shared profile cutter + shared inspection hoist |
| Multi-product | Reuse cutting and inspection assets already serving roller or zebra blinds |
Quality-Control Checklist
- Protect sheer material from snagging and compression
- Keep vane layers parallel
- Control tube/profile dimensions
- Verify uniform opening, closing and full-width alignment
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
