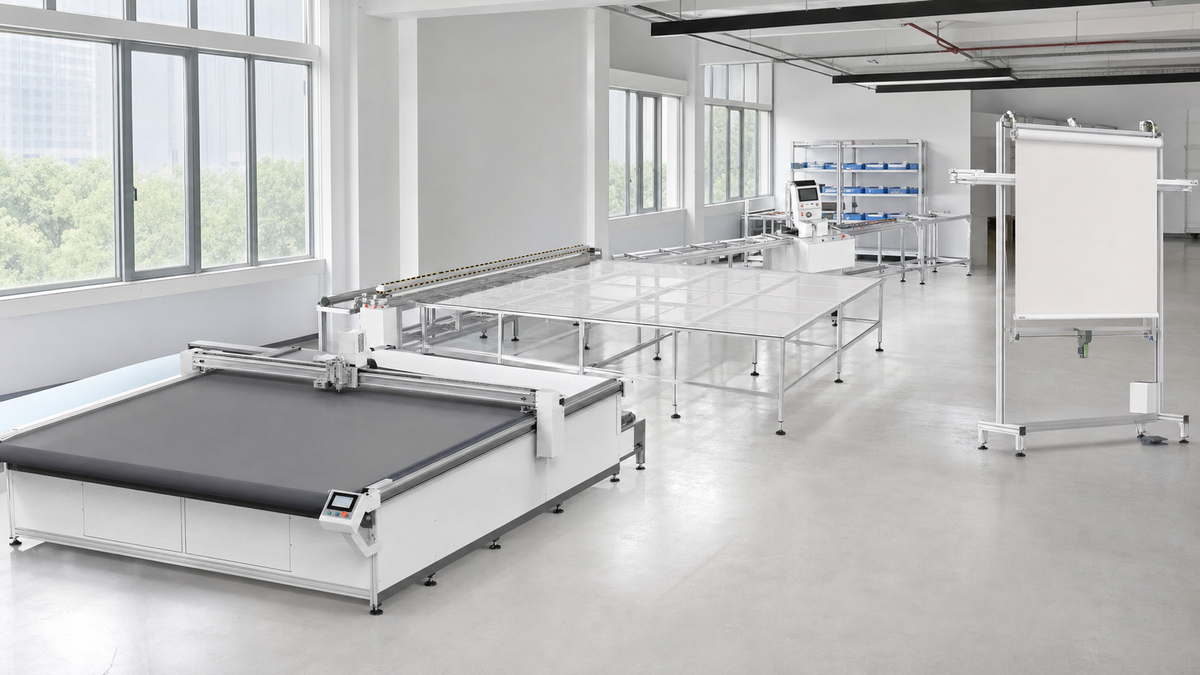

Plan an indoor roller blind line from square fabric cutting and profile preparation to assembly, tracking adjustment and vertical inspection. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Confirm fabric direction, finished size, tube diameter and control system.
- Cut the roller fabric square to size.
- Cut the tube, headrail and bottom profile.
- Attach fabric and assemble the drive and accessories.
- Hang the finished blind.
- Inspect rolling, tracking, flatness and bottom-rail level.
Step 1: Fabric cutting — choose one
Pressure-Knife Fabric Cutting Machine
Line status: Essential cutting option
| Version | Catalog parameters |
|---|---|
| Machine specification | 600 kg | 0.75 kW | 4,800 × 4,280 × 965 mm |
A cold-cut option for regular custom production; quotation configurations are available with or without the worktable.
Vibration Knife Fabric Cutting Machine
Line status: Alternative / shared digital cutting platform
| Version | Catalog parameters |
|---|---|
| 4 m version | 1,200 kg | 11 kW | 5,470 × 3,920 × 1,300 mm |
| 6 m version | 1,500 kg | 11 kW | 7,470 × 3,920 × 1,300 mm |
Choose one working length according to maximum product width. Layout-and-label configurations are available; confirm software workflow before specification.
Step 2: Profile cutting — choose one
Hand-Lever Aluminum Profile Cutting Machine
Line status: Essential budget alternative
| Version | Catalog parameters |
|---|---|
| Catalog specification | 320 kg | 2.5 kW | 6,650 × 1,050 × 1,300 mm |
Suitable for flexible custom sizes and lower output. It is an alternative to CNC positioning.
CNC Aluminum Profile Cutting Machine
Line status: Recommended shared profile cutter
| Version | Catalog parameters |
|---|---|
| Catalog specification | 320 kg | 2.5 kW | 6,650 × 1,050 × 1,300 mm |
Best for repeat dimensions and faster positioning. Confirm blade, guarding and profile fixtures against actual drawings.
Step 3: Final hanging inspection
Single-Sided Inspection Hoist
Line status: Shared final inspection equipment
| Version | Catalog parameters |
|---|---|
| Catalog specification | 150 kg | 0.4 kW | 3,000 × 800 × 3,300 mm |
Use for vertical operation, tracking, squareness and appearance inspection.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | Pressure-knife cutter + hand-lever profile cutter + manual assembly |
| Recommended | Material-matched cutter + CNC profile cutter + inspection hoist |
| Multi-product | Shared vibration knife, CNC cutter and hoist for several fabric-blind styles |
Quality-Control Checklist
- Square cutting and consistent grain direction
- Straight tube and matched profile lengths
- No telescoping or lateral drift
- Smooth full travel and level bottom rail
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
