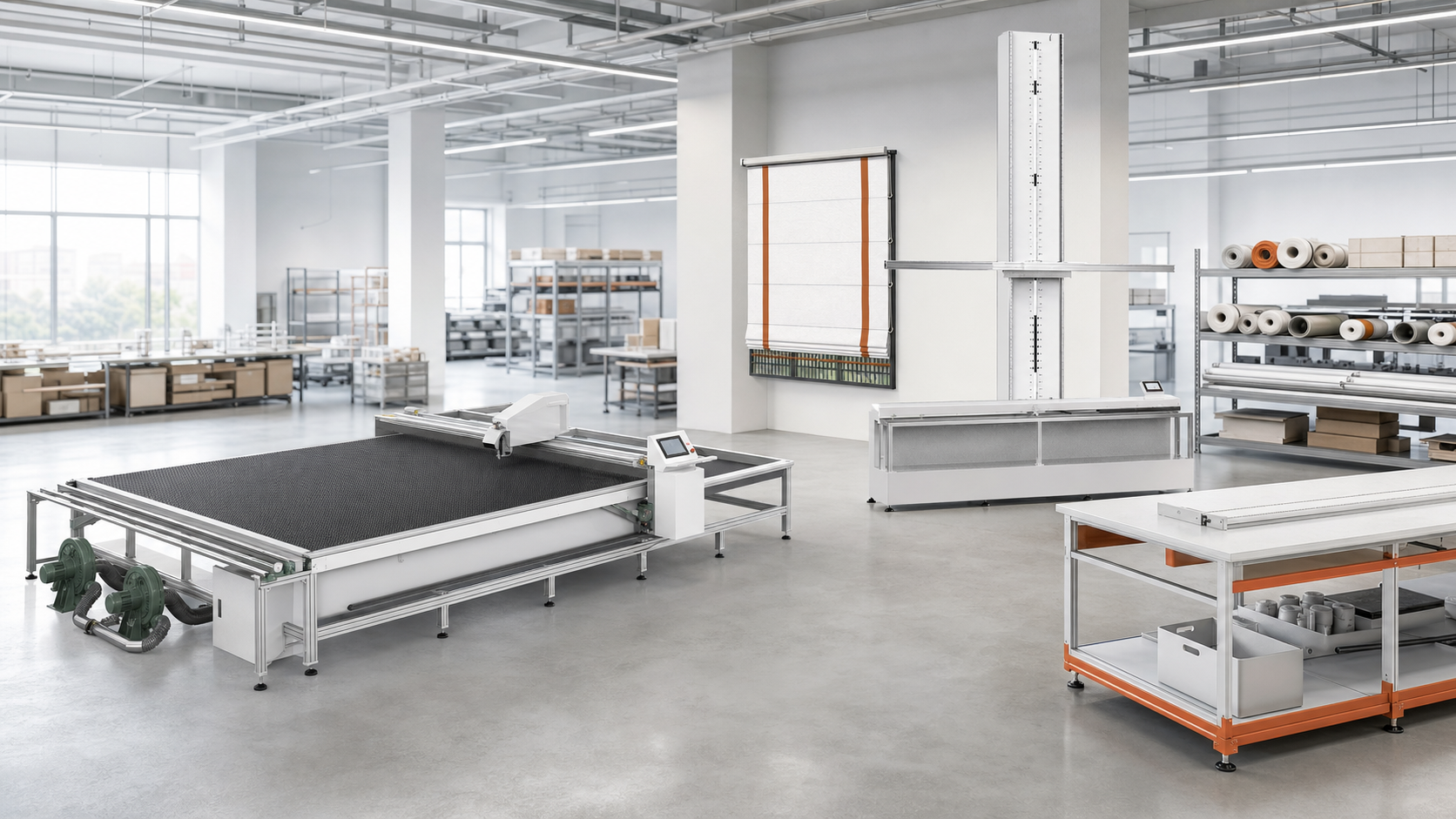

Plan Roman blind production with accurate textile cutting, repeat fold positioning, rod preparation, assembly and stacking inspection. The equipment sequence below follows the Sunshieldorhonki catalog; prices are intentionally excluded because final tooling, voltage, guarding and automation depend on the customer’s product.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Manufacturing Process
- Confirm finished size, seam allowances, lining and fold spacing.
- Cut face fabric and lining.
- Prepare fold and rod positions.
- Install rods, tapes, rings or pockets.
- Connect headrail and lifting system.
- Cycle and adjust until folds stack evenly.
Step 1: Fabric cutting — choose one
Laser Fabric Cutting Machine
Line status: Alternative for compatible synthetic fabrics
| Version | Catalog parameters |
|---|---|
| Machine specification | 1,300 kg | 3.6 kW | 5,875 × 4,200 × 1,200 mm |
Run a sample test for edge sealing, heat marks and discoloration before selecting laser cutting.
Vibration Knife Fabric Cutting Machine
Line status: Alternative / shared digital cutting platform
| Version | Catalog parameters |
|---|---|
| 4 m version | 1,200 kg | 11 kW | 5,470 × 3,920 × 1,300 mm |
| 6 m version | 1,500 kg | 11 kW | 7,470 × 3,920 × 1,300 mm |
Choose one working length according to maximum product width. Layout-and-label configurations are available; confirm software workflow before specification.
Step 2: Roman blind core process
Fully Automatic Roman Blind Machine
Line status: Recommended category-specific machine
| Version | Catalog parameters |
|---|---|
| Catalog specification | 600 kg | 1 kW | 3,500 × 1,045 × 4,500 mm |
Standardizes repeated positioning and rod/fold preparation; confirm the Roman construction before configuration.
Step 3: Optional shared final inspection
Single-Sided Inspection Hoist
Line status: Shared final inspection equipment
| Version | Catalog parameters |
|---|---|
| Catalog specification | 150 kg | 0.4 kW | 3,000 × 800 × 3,300 mm |
Use for vertical operation, tracking, squareness and appearance inspection.
Configuration Options
| Level | Recommended scope |
|---|---|
| Essential | Material-matched cutter + manual preparation and assembly |
| Recommended | Digital cutter + automatic Roman blind machine + inspection area |
| Multi-product | Shared vibration knife and inspection hoist + dedicated Roman machine |
Quality-Control Checklist
- Fabric shrinkage, pattern direction and lining behavior
- Parallel fold and rod positions
- Correct cord routing and load distribution
- Even stacking through repeated cycles
What We Need to Configure Your Line
Send Sunshieldorhonki your blind sample or drawings, maximum finished width and height, fabric/slat/profile materials, expected daily or monthly output, preferred automation level, workshop dimensions, power and compressed-air details, and any existing machines you want to reuse.
We will turn those inputs into a process plan, machine list and factory-layout proposal without forcing duplicate equipment.
