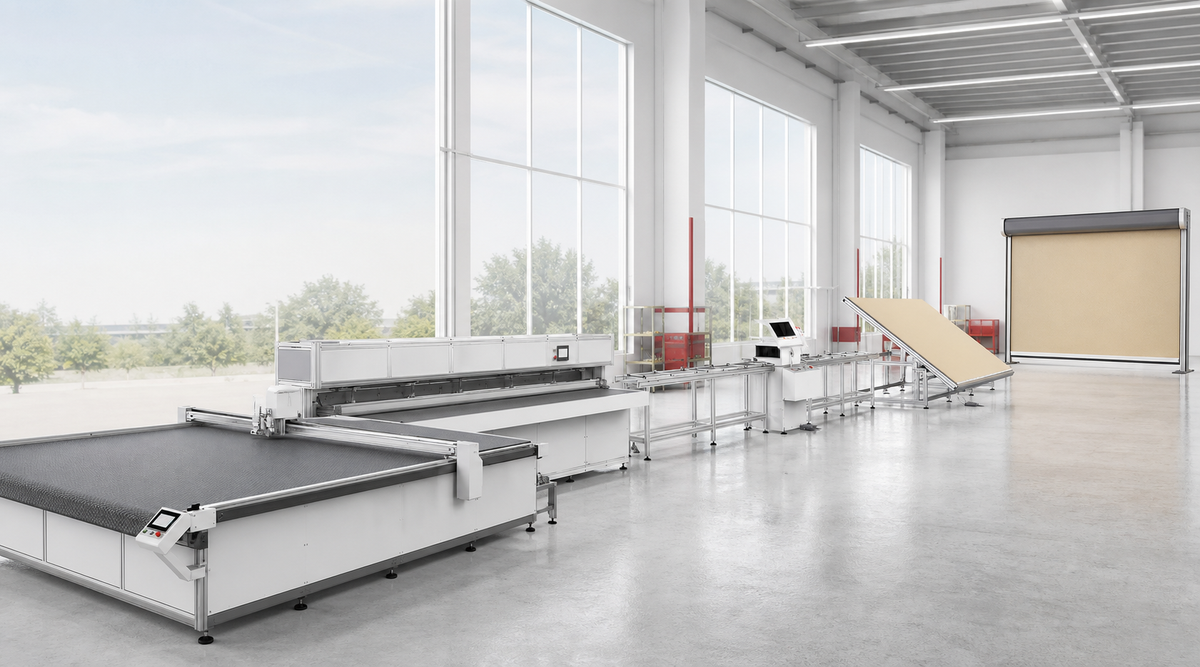

A multi-product blind factory does not need a separate copy of every machine for every product. The practical approach is to share general processing assets and add only the category-specific core machines.
Need a production-line recommendation?
Tell us your blind type, target capacity and factory layout. Our team will recommend a practical machine configuration.
Shared Fabric-Cutting Platforms
Vibration Knife Fabric Cutting Machine
Line status: Alternative / shared digital cutting platform
| Version | Catalog parameters |
|---|---|
| 4 m version | 1,200 kg | 11 kW | 5,470 × 3,920 × 1,300 mm |
| 6 m version | 1,500 kg | 11 kW | 7,470 × 3,920 × 1,300 mm |
Choose one working length according to maximum product width. Layout-and-label configurations are available; confirm software workflow before specification.
Laser Fabric Cutting Machine
Line status: Alternative for compatible synthetic fabrics
| Version | Catalog parameters |
|---|---|
| Machine specification | 1,300 kg | 3.6 kW | 5,875 × 4,200 × 1,200 mm |
Run a sample test for edge sealing, heat marks and discoloration before selecting laser cutting.
Pressure Knife + Flying Knife Machine
Line status: Mechanical cutting alternative
| Version | Catalog parameters |
|---|---|
| Single flying knife | 650 kg | 0.9 kW | 4,800 × 4,280 × 965 mm |
| Double flying knife | 700 kg | 1.2 kW | 4,900 × 4,280 × 965 mm |
Select single or double flying knife by trimming method and required throughput; they are alternatives, not a mandatory pair.
Shared Profile and Rail Processing
CNC Aluminum Profile Cutting Machine
Line status: Recommended shared profile cutter
| Version | Catalog parameters |
|---|---|
| Catalog specification | 320 kg | 2.5 kW | 6,650 × 1,050 × 1,300 mm |
Best for repeat dimensions and faster positioning. Confirm blade, guarding and profile fixtures against actual drawings.
Fully Automatic Rail Machine
Line status: Shared rail-processing machine
| Version | Catalog parameters |
|---|---|
| Catalog specification | 250 kg | 4 kW | 7,000 × 800 × 1,200 mm |
Confirm rail cross-section, hole pattern, cut length and tooling from customer drawings.
Pneumatic Punch
Line status: Shared auxiliary station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 15/25 kg | 0.7 MPa compressed air, 30 L/min | 275 × 320 × 350 mm |
Punch tooling is profile-specific and must be quoted after sample or drawing review.
Bottom Rail Drilling Machine
Line status: Shared rail-finishing station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 25 kg | 0.2 kW | 600 × 400 × 750 mm |
Coordinate hole positions with cord path, ladder system and end clearances.
Shared Final Inspection
Single-Sided Inspection Hoist
Line status: Shared final inspection equipment
| Version | Catalog parameters |
|---|---|
| Catalog specification | 150 kg | 0.4 kW | 3,000 × 800 × 3,300 mm |
Use for vertical operation, tracking, squareness and appearance inspection.
Single-Column Inspection Hoist
Line status: Shared compact inspection station
| Version | Catalog parameters |
|---|---|
| Catalog specification | 80 kg | 0.5 kW | 250 × 640 × 3,100 mm |
A compact vertical test station for level, travel and control checks.
Category-Specific Investments
Keep dedicated machines only where the product process truly differs: windproof fabric welding, Dream blind automated assembly, Roman blind processing, magnetic-blind rail equipment, PVC slat drilling/cutting, wood-blind punching/threading and honeycomb drilling/cutting.
How We Avoid Duplicate Equipment
Sunshieldorhonki reviews your product mix, maximum sizes, output, floor plan and existing machines, then identifies bottlenecks and shared capacity before proposing automation.
Plan Your Blind Production Line
Get machine selection, line-layout and installation guidance for your project.
